Lane assignment signs guide road users to a line of traffic to optimise traffic flow. At multi-lane access points, they show those lanes that are closed and allow traffic to be diverted to neighbouring lanes. They are widely installed on the approaches to toll stations, tunnels and motorway exits.
A complete sign solution
TTS offers a full range of LED lane assignment signs to provide road users with information and for traffic management.

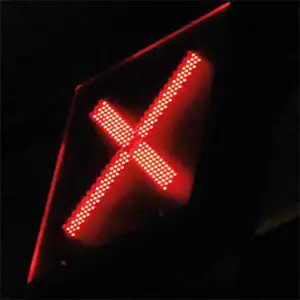

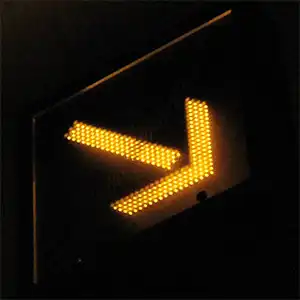

The use of wide-angle high-intensity diodes to produce the symbols means that optimum message visibility is obtained under any conditions.
Lane assignment signals can display several messages (usually between 1 and 4).
TTS offers a full range of LED lane assignment signs to provide road users with information and for traffic management.
The use of wide-angle high-intensity diodes to produce the symbols means that optimum message visibility is obtained under any conditions.
Lane assignment signals can display several messages (usually between 1 and 4).

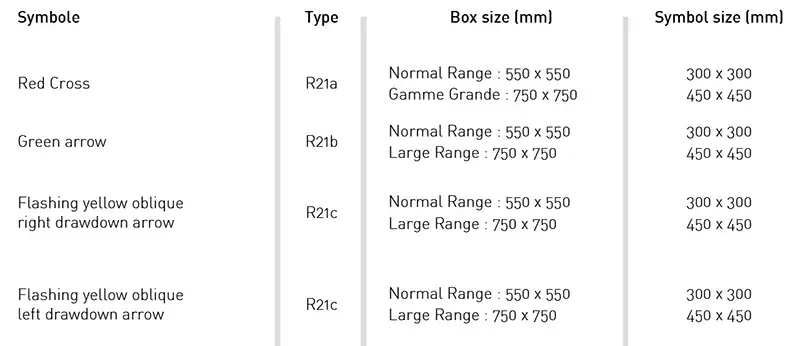

Appropriate sizes The large range must be used on two-way roads (authorized maximum speed: 110 or 130 km/h) on other roads, both ranges can be used.

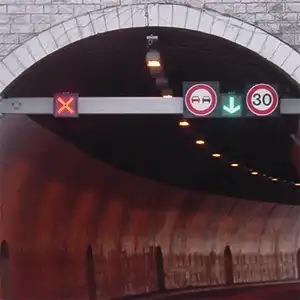

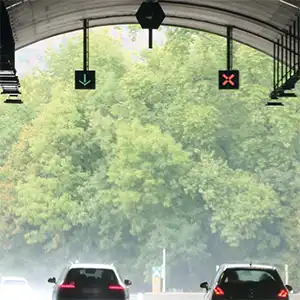

In tunnels, where the light environment is homogeneous and constant, the dimension of the square can be reduced to the size of the symbol.
The large range must be used on two-way roads (authorized maximum speed: 110 or 130 km/h) on other roads, both ranges can be used.
In tunnels, where the light environment is homogeneous and constant, the dimension of the square can be reduced to the size of the symbol.

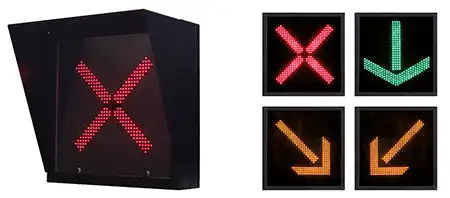

LANE ALLOCATION SIGNS H300
The H300 lane control signals are manufactured with a 190 mm thick aluminum-profile housing. The front-opening access door is retained by safety cables and features a UV-resistant polycarbonate front panel.The panel is secured using watertight compression latches.The housing is fini...
LANE ALLOCATION SIGNS H450
The H450 Lane Control Signals are manufactured from a 190 mm deep aluminium-profile enclosure. The front-opening door is retained by safety cables and fitted with a UV-resistant polycarbonate face panel.The sign is secured using weatherproof compression latches, ensuring a reliable s...
