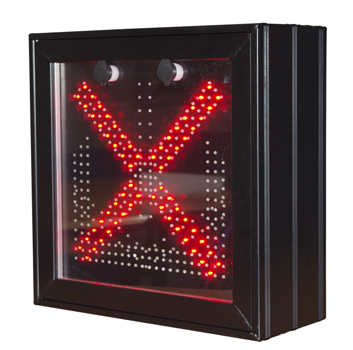

Lane Allocation Signs

The H300 lane control signals are manufactured with a 190 mm thick aluminum-profile housing. The front-opening access door is retained by safety cables and features a UV-resistant polycarbonate front panel.
The panel is secured using watertight compression latches.
The housing is finished with a standard black epoxy coating (other colors available upon request).
The sign is supplied with rear mounting rails as standard. Numerous mounting systems are available to meet your installation requirements.
Depending on your needs, the lane control signal can be equipped with 1, 2, 3, or 4 symbols. Each symbol measures 300 x 300 mm and is composed of Red, Green, and Yellow LEDs. Available symbols include (Red Cross R21a), (Green Arrow R21b), (Yellow Right Merge Arrow R21c), and (Yellow Left Merge Arrow R21d).
The LED service life exceeds 100,000 hours.
The sign can incorporate an automatic day/night brightness control system, allowing it to switch automatically between daytime and nighttime luminance levels.
Power supply options include direct operation from 230 V AC or 12 V DC.We manufacture lane control signals tailored to your requirements, with the ability to integrate up to 4 symbols:```
