ROTATING PANELS

Lane neutralization pre-marking

In the context of motorways, expressways and tunnels, lane neutralization is an important action in the large family of equipment intended to ensure the safety of agents and users.

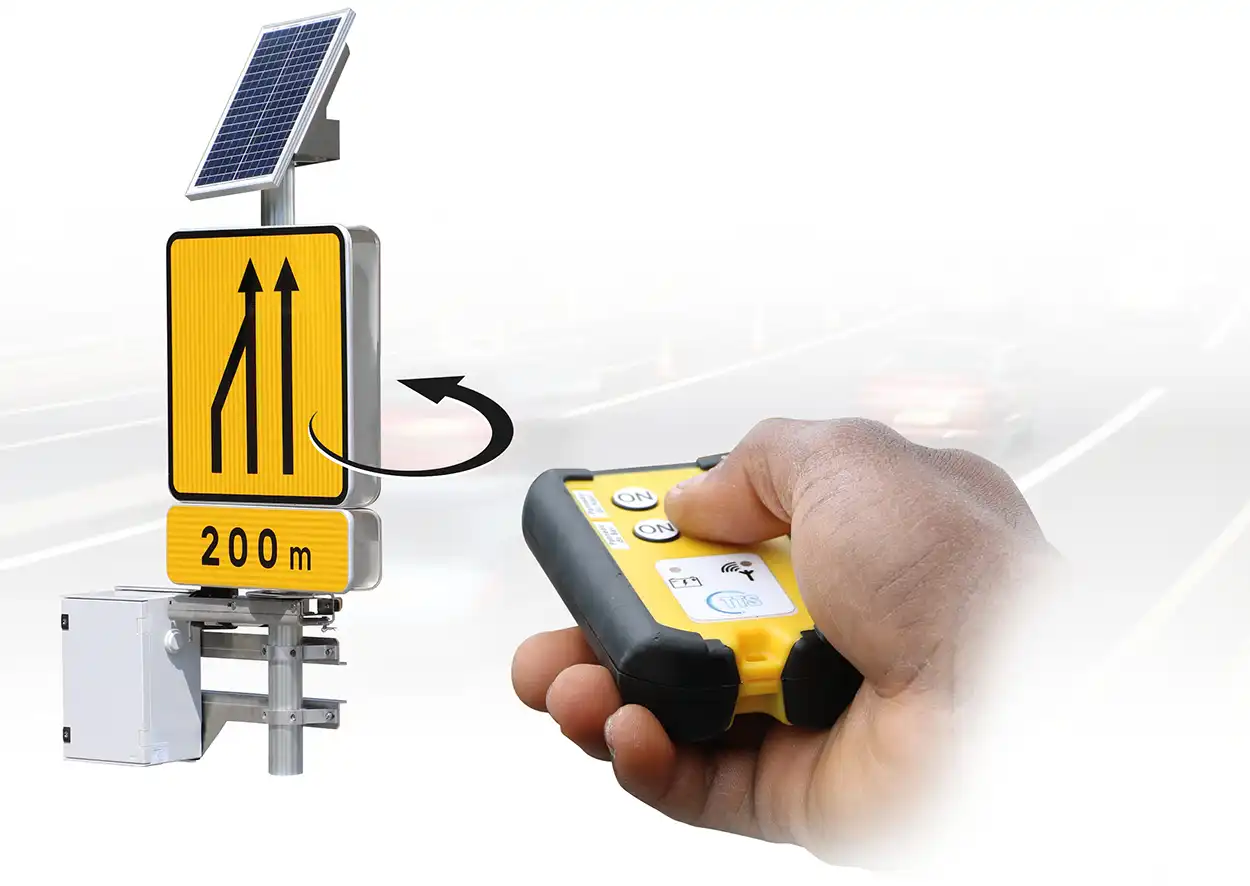

Rotary panels are motorized equipment used to implement advance signaling sequences such as lane closure beacons.

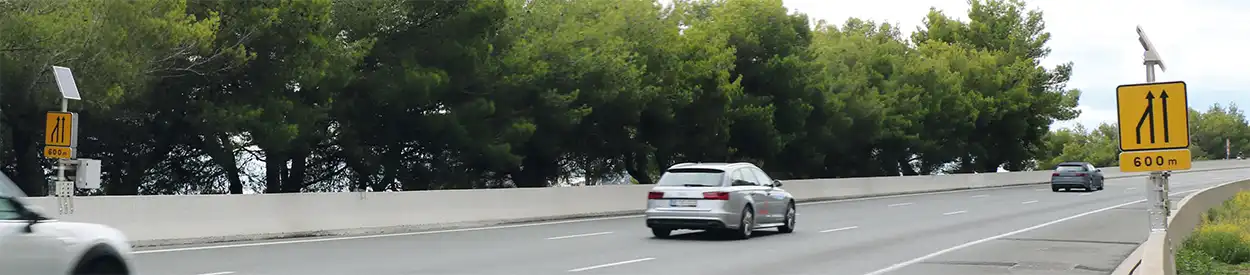

When not active, the panels are parallel to the road. When the system is activated, the panels pivot to place themselves in the axis of the road and thus act as temporary signs.



These panels are an alternative to luminous dynamic panels.

Our system allows an agent to deploy the signaling adapted to his site and his situation with ease thanks to its modular design:
  • Possibility of manual, remote-controlled, piloted control.
  • Unpowered operation, battery, photovoltaic, on public lighting, 230 V.
  • Installation on the ground (on solid mass), on GBA (reinforced concrete slide), wall.

Operating mode

The mode of operation of the pre-beaconing system made up of rotating panels, can be carried out in two ways: Manually, or via a power supply to operate the motor, activating the rotation of the panel.

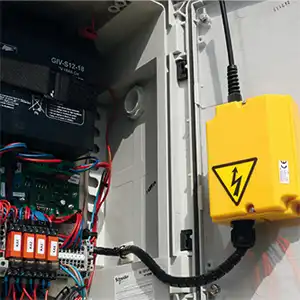

The equipment can be powered by an electrical connection, or independently with a photovoltaic power supply integrated into the equipment.

The different possible power supply modes are:
  • Mains supply 230 V.

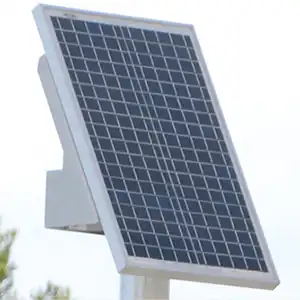

  • Photovoltaic power supply (coupled to a battery).
  • Battery supply.
  • Power supply on public lighting (SEP).

Piloting modes

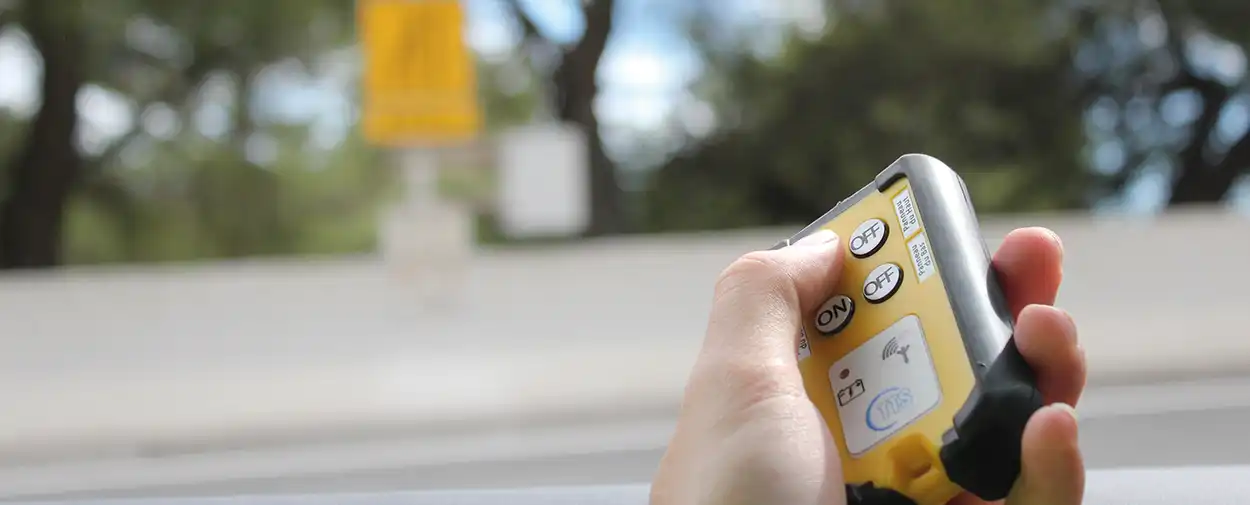

The panels are remote controlled (motor control) by an operator on site via a remote control (maximum distance 100m).

Long-distance control is also possible via 3/4G link for an operator installed in a centralized control station.

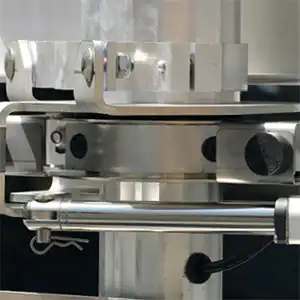

It is also possible at any time to disengage the electric cylinder in order to be able to maneuver and lock the panel concerned.




Fixings and installation

The installation of the panels is possible either on shoulder, or on central ground (TPC).

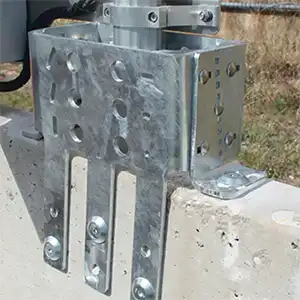

Our modular system is coupled with a range of fixings allowing it to be installed on any site and support:
  • On ground foundation.
  • On reinforced concrete barrier.
  • Wall.
