Entrance Housings

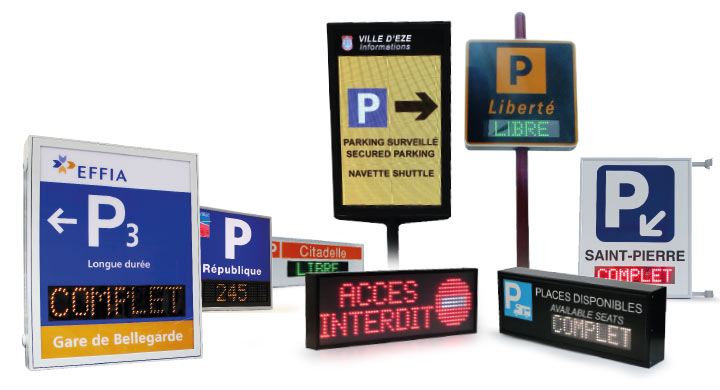

Housings Standard or Specific Furniture and Displays Parking entrance boxes are a standard. They are both the latest milestone in the signal chain that has led the motorist so far, and at the same time the very first sign in the parking lot. Often, a dynamic insert is integrated to prevent occupancy of the car park: number of spaces available, FREE or FULL or CLOSED or CLOSED ACCESS or PROHIBITED ACCESS.
Parking entrance boxes are a standard. They are both the latest milestone in the signal chain that has led the motorist so far, and at the same time the very first sign in the parking lot. Often, a dynamic insert is integrated to prevent occupancy of the car park: number of spaces available, FREE or FULL or CLOSED or CLOSED ACCESS or PROHIBITED ACCESS.
Advantages of dynamic housings:
- These housings come standard with rear rail mounting for increased adaptability.
- Housing with glazing bead frame.
- This equipment can be controlled by TTS counting controllers, our supervision systems, or directly by existing BMS systems.
Specifications of dynamic housings:
| Mechanical | Glazing bead frame housing Lacquered aluminum profile 3 mm clear anti-glare polymethyl methacrylate faces Standard color RAL 9006 (other colors optional) |
| Power supply | 230 V AC |
| Display | Choice of:
|
| Integrated terminal block inside the housing Control depending on display type:
| |
| Mounting methods | Rear rails |
| Applied decorations | Printing technique adapted to the project: Digital printing with matte anti-UV lamination or decorations in mass-tinted material |
| Options | Other displays available 4G control LED backlighting with automatic control 20 kA surge protector RAL on request |
HOUSIGNS 600 x 200 mm 90 mm three-text display
Ref : 54001
Aluminum parking entrance box measuring 600 x 200mm, with fixed LED messages height 90 mm, protected by front panel.
HOUSINGS 800 x 300 mm DISPLAY 90 mm 3 TEXTS
Ref : 50287
Car park entrance box in aluminium, dimensions 800 x 300 mm, with fixed LED messages, height 90 mm with fixed messages, protected by the front face.
HOUSIGNS 800 x 300 mm DISPLAY 80 mm MONOCHROME
Ref : 53159
Car park entrance box in aluminium, dimensions 800 x 300 mm, with LED displays 80 mm high, 7 characters 1 LED per point, protected by front face.
Housings 700 x 250 Display 125mm
Ref : 56116
Aluminum parking entrance box measuring 700 x 250 mm, with LED displays, height 125 mm, 7 characters, 2 LEDs per point, protected by front panel.
HOUSINGS 1000 x 375 mm DISPLAY 125mm
Ref : 56207
Aluminum car park entrance housing measuring 1000 x 375 mm, with LED displays height 125 mm 2 LEDs per amber color point 7 characters, protected by front panel.
HOUSIGNS 1000 x 375 mm DISPLAY 125 mm TRICHROME
Ref : 63184
Aluminum parking entrance box measuring 700 x 250 mm, with trichrome LED displays, height 125 mm, 7 characters, protected by front panel.
HOUSIGNS 1000 x 375 mm DISPLAY 125 mm TRICHROME
Ref : 56208
Aluminum parking entrance box measuring 1000 x 375 mm, with trichrome LED displays, height 125 mm, 7 characters, protected by front panel.

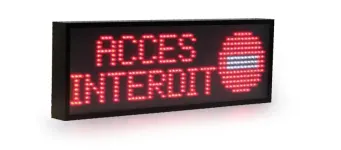

FIRE SIGNALING BOX FOR PARKING
Ref : According to supply and order
Single-sided dynamic box (red and white LEDs) ACCESS PROHIBITED + B1The dynamic No Entry + No Entry LED box responds to the need to secure the entrance to car parks or other parking areas. This box meets the obligation to prevent any fire in the car park. It can be controlled by the fire detection system and will be positioned at the entrance to t...
