HOUSINGS 800 x 300 mm DISPLAY 90 mm 3 TEXTS

Ref : 50287

HOUSINGS 800 x 300 mm DISPLAY 90 mm 3 TEXTS
General information

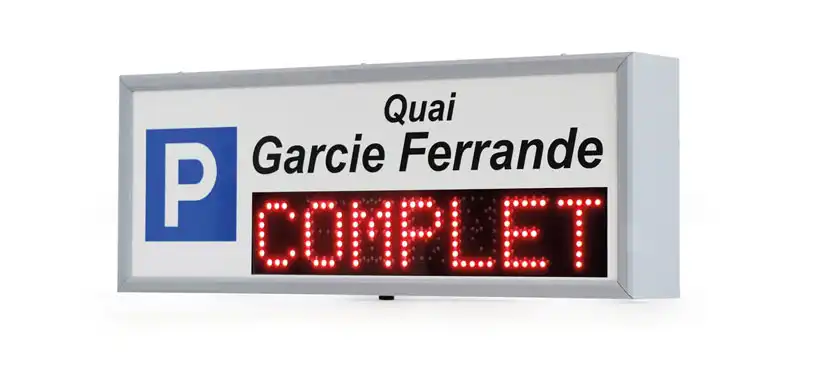

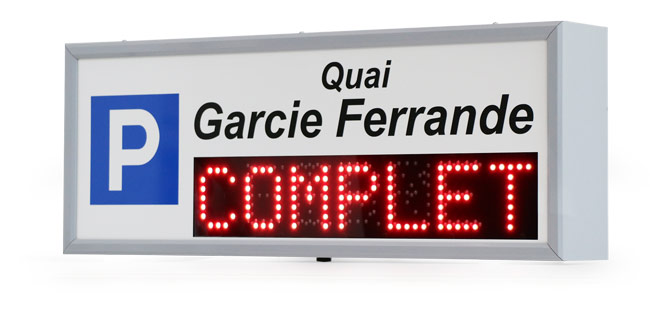

Car park entrance box in aluminium, dimensions 800 x 300 mm, with fixed LED messages, height 90 mm with fixed messages, protected by the front face.
Technical specifications
  • Lacquered aluminum profile, 800 x 300 mm.
  • Single sided.
  • Front panel in 3 mm colorless anti-reflective polymethyl methacrylate.
  • Rear panel in 30/10e aluminum with fixing rails.

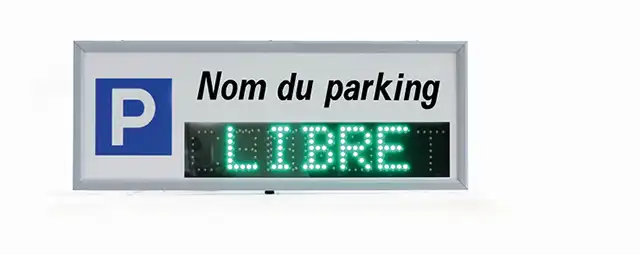

  • Fixed message display FREE / FULL / CLOSED 90 mm high in green / red colors.
  • 30° 4000mcd LEDs.
  • Management terminal integrated in the box.
  • Control by dry contact or RS485 on protocol to be defined.
  • Brightness management by day/night cell.


Options:

  • Other texts on request 1 to 3 texts up to 7 characters.
  • Possible display colors: green / red / amber / white / blue
  • Aluminum mast diameter 90 mm x 3 m with anchoring kit and connection box.
  • Surge arrester 20 kA.
  • RS485 control.
  • RAL on request.
Power supply 230 VAC
Autonomy 15 W
Thickness 127 mm
Size (L x l x h) 800 x 127 x 300 mm
Color RAL 9006
