Urban mobility has become in recent years the main act of commitment of communities towards citizens.
Responding to the problems of traffic flow, the supply of free parking spaces and pollution is becoming a priority for the cities of tomorrow.

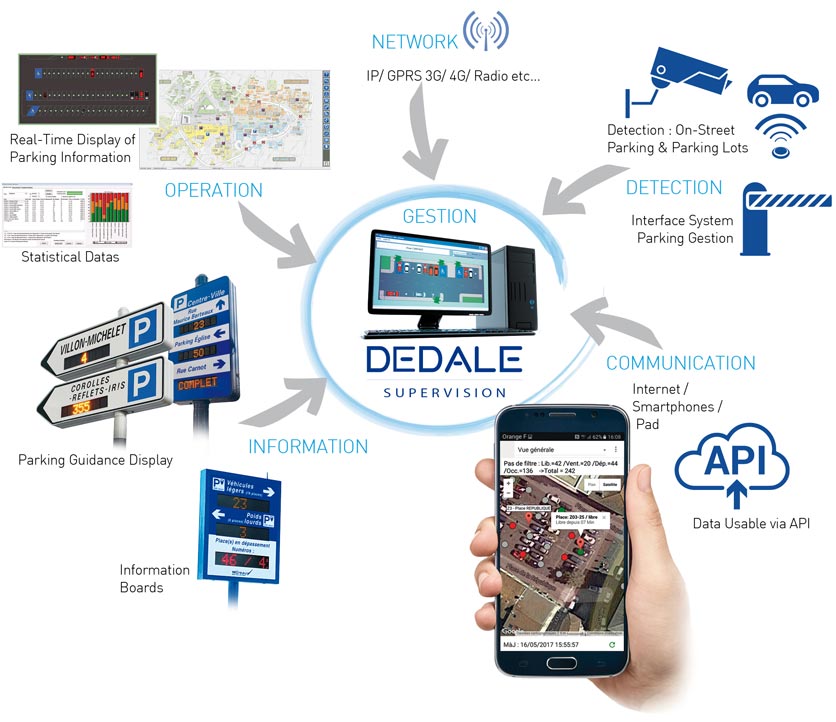

One solution is to use an innovative device, a smart parking observatory and parking designed for cities.


VISIO'PARK SMARTPHONE APPLICATION

In addition to directing users to free spaces using panels placed in town, the VISIO'PARK TTS supervisor is also piloting a "mobile" application. This application is available to each Municipal Police or ASVP agent on their Smartphone.The agent's interventions are thus optimized because...
application-visiopark

RECESSED SENSOR

Ref: 45944

The recessed sensor is an intelligent parking sensor that detects the occupancy of each parking space in real time using dual detection technology (infrared and magnetic). As an integral part of the SENSIT platform, the SENSIT IR flush mount optimizes parking usage, reduces emissions and ensures a rapid return on investment.

Typical applications with the recessed sensor include on-street parking, truck and bus parking, and installations that require plow-resistant sensors with the highest detection accuracy possible.

capteur-encastre-tts_22-07-2020

SEMI-RECESSED SENSOR

Ref: 37780

Semi-recessed vehicle detection sensor, using dual technology
Double detection (infrared and magnetic)
Anti-vandalism installation
Wireless sensors effectively detect the presence of a vehicle in a parking space without complex or time-consuming installation. They are installed at each parking space. The system is based on a self-regenerating wireless mesh network.

Wireless detection and transmissionThe possibility of communication between the pads is a unique feature of the sensor. The system is easy to install and commission. After installation, no maintenance is necessary for several years.Presence information is transmitted by the sensor to th...
plot-tt-semi-encastre

SURFACE SENSOR

Ref: 37782

Wireless surface sensors effectively detect the presence of a vehicle in a parking space without complex or time-consuming installation.
They are installed at each parking space. The system is based on a self-regenerating wireless mesh network.

Wireless detection and transmissionThe possibility of communication between the pads is a unique feature of the sensor. The system is easy to install and commission. After installation, no maintenance is necessary for several years.Presence information is transmitted by the sensor to th...
capteur-de-surface

FYP detector

Ref: 44420

With simple implementation and minimal operating constraints, FYP ultrasonic sensors are ideal for your indoor parking lots. Base fitted with connectors for connecting jumpers (bus and power supply)

We recommend installing the sensors on a rail or cable tray. The sensor must be placed according to the recommendations on the next page. It must be centered in relation to the square without any obstacle being in its detection field from the ultrasound capsule. For mechanical fixing to the...
capteur-fyp

DATA COLLECTOR

Ref: 45942

The data collector is the interface between the sensors, the relay node and the software. The gateway retrieves real-time status data from individual sensors via the relay node through the wireless mesh network. This data is transmitted to the VISIO'PARK Interface Software.

Automatic data collectionThe data collector offers 3G, GPRS and Ethernet communication. It automatically inserts all data received via the hosted server into the VISIO'PARK interface software.Two-way communicationThe gateway enables operation, maintenance and configuration of equipm...
collecteur

UNIDIRECTIONAL RELAY PLOT

Ref: 37785

The relay pad optimizes communication as well as the general reliability of the network. It guarantees the rapid transmission of messages from the vehicle detection sensors to the data collector.

Wireless communicationThe 2G relay pad is a device that operates entirely wirelessly. It is thus easy to install on a mast. After installation, no maintenance is necessary for several years.Self-regenerating networkThe sensors follow several transmission paths, ensuring a self-regen...
plot-relais
