HOUSIGNS 800 x 300 mm DISPLAY 80 mm MONOCHROME

Ref : 53159

HOUSIGNS 800 x 300 mm DISPLAY 80 mm MONOCHROME
General information

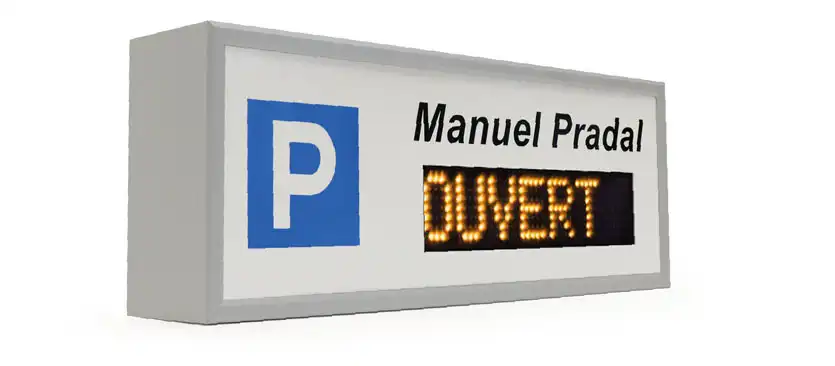

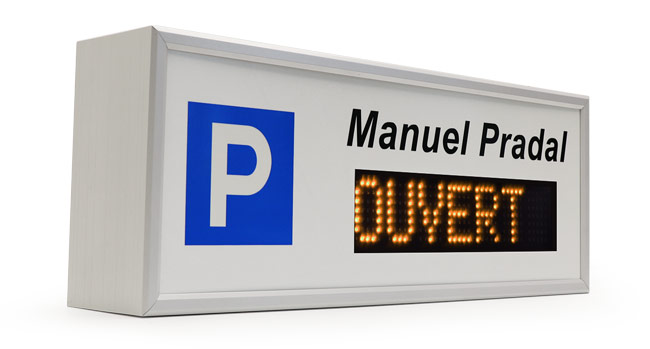

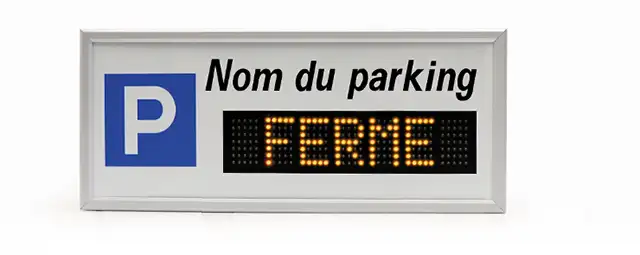

Car park entrance box in aluminium, dimensions 800 x 300 mm, with LED displays 80 mm high, 7 characters 1 LED per point, protected by front face.
Technical specifications
  • Lacquered aluminum profile, 800 x 300 mm.
  • single sided
  • Front panel in 3 mm colorless anti-reflective polymethyl methacrylate.
  • Front face decoration in class 1 retroreflective film (50 cd/lux/m²).
  • Rear panel in 30/10e aluminum with fixing rails.
  • Variable message display, number of places, complete, closed, height 80 mm, 7 characters, 1 LED per point.
  • LEDamber 30°2750 mcd.
  • Management terminal integrated in the box.
  • IP, RS485, RS232, RS422 command on protocol to be defined + 3 priority contact inputs.
  • Brightness management per cell.



Options:

  • Aluminum mast diameter 90 mm x 3 m with anchoring kit and connection box.
  • Surge arrester 20 kA.
  • Forced ventilation with filters.
  • RAL on request.
Power supply 230 VAC
Autonomy 20 W
Thickness 156 mm
Size (L x l x h) 800 x 156 x 300 mm
Color RAL 9006
