HOUSIGNS 1000 x 375 mm DISPLAY 125 mm TRICHROME

Ref : 56208

HOUSIGNS 1000 x 375 mm DISPLAY 125 mm TRICHROME<br />
General information

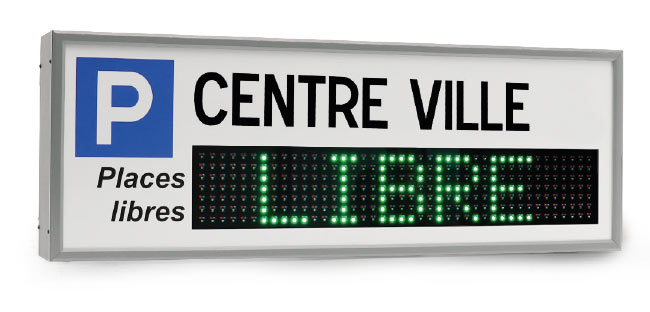

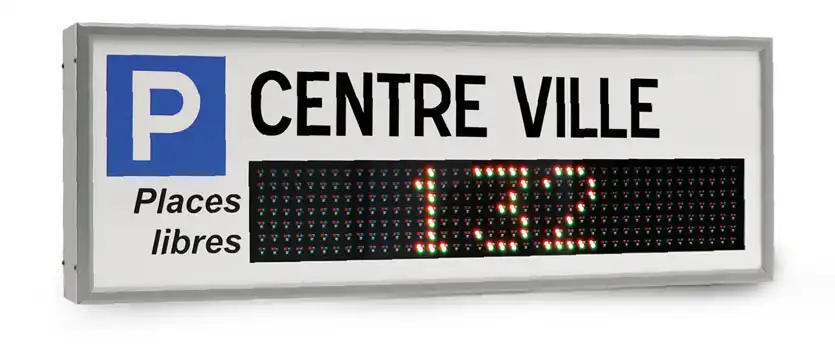

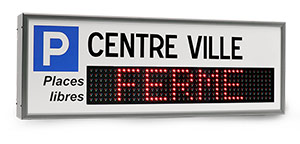

Aluminum parking entrance box measuring 1000 x 375 mm, with trichrome LED displays, height 125 mm, 7 characters, protected by front panel.




Technical specifications
  • Lacquered aluminum profile, 1000 x 375 mm.
  •  Single sided.
  •  Front panel in colorless 3 mm polycarbonate.
  •  Front decoration in class 1 retroreflective film (50 cd/lux/m²).
  •  Rear panel in 30/10e aluminum with fixing rails.
  •  Variable message display 125 mm high green/red/yellow colors 7 characters.
  •  Red / green LEDs 30° 3000 mcd
  •  Management terminal integrated into the box.
  •  IP, RS485, RS422 control on protocol to be defined + 3 priority contact inputs.
  •  Brightness management by day/night cell.


Options:

  •  RGB display card.
  •  Aluminum mast Ø76 length 2900 mm + 2 collars REF 60259.
  •  Aluminum mast Ø90 length 2900 mm + inspection hatch + 6 A fuse + 2 clamps REF 56110.
  •  20 kA surge protector.
  •  Forced ventilation with filters.
  •  RAL on request.


Power supply 230 V AC
Autonomy 20 W
Thickness 156 mm
Size (L x l x h) 1000 x 375 mm
