Signalisation des chantiers, des vehicules

Attachée commerciale département Signalisation chantier, véhicule et permanent
f.fortet@ttsys.fr

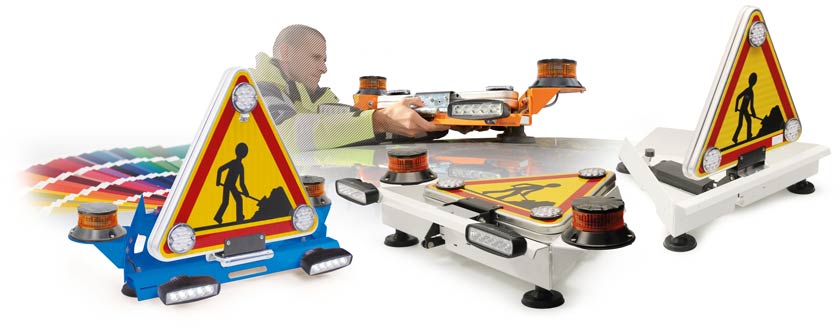

integral-tts

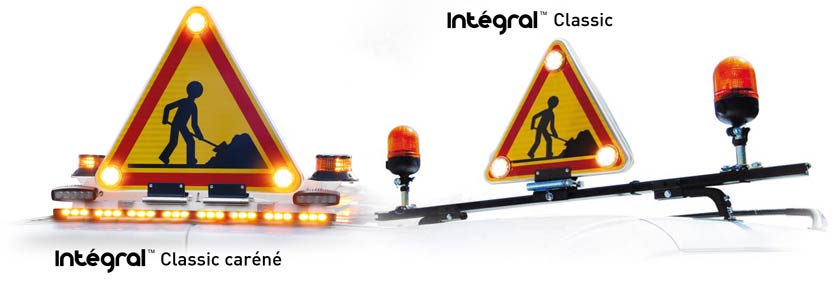

INTEGRAL Classic streamlined


Universal system "ALL IN ONE" Removable or Fixed
 Without a rackit is immediately suitable for all vehicles
tts-gamme-integral-classic-carene

Manual Lift

INTEGRAL Streamlined Classic 500 - Manual Lift

Ref: 29112

The streamlined Classic integral is an integrated system in a painted aluminum fairing. It is very convenient to install and use.

Triangle: It is made of anodized aluminum and consists of two AK5 500 mm class 2 panels assembled back to back. It is mounted on a double-acting hinge which allows the triangle to tilt forwards or backwards. The light element is made up of three extra flat optics Ø 72 mm on each side. Eac...
integral-carene-500-manuel-2021-deplie

INTEGRAL Streamlined Classic 700 - Manual Lift

Ref: 29113
1 triangle 700 LED. power supply cable length10 metres with cigarette-lighter plug1 magnetic fixing kit.
integral_carene

Electric Lift

INTEGRAL Streamlined Classic 500 - Electric Lift

Ref: 29963

The Streamlined Classic integral With a 500 mm triangle and electric lift is an integrated system in a painted aluminum fairing. It is very convenient to install and use.



Triangle: It is made of anodized aluminum and is composed of two AK5 500 mm class 2 panels assembled back to back. The light element is made up of three extra flat optics Ø 72 mm on each side. Each light has 12 yellow leds of high light intensity and is protected by a magnifying lens. The l...
integral-carene-500-electrique-2021-deplie

INTEGRAL Streamlined Classic 700 - Electric Lift

Ref: 29964

The Streamlined Classic integral With a 700 mm triangle and electric lift is an integrated system in a painted aluminum fairing. It is very convenient to install and use.


Triangle: It is made of anodized aluminum and consists of two 700mm AK5 panels assembled back to back. The light element is made up of three extra flat optics Ø 72 mm on each side. Each has 12 yellow leds of high light intensity. The lifespan of a led is more than 100,000 hours. The trian...
integral-carene-700-electrique-2021-deplie

2 Rotating lights kit

Two orange LED beacons

Ref: 29030




The streamlined Integral Classic can be completed with a kit of two LED rotating beacons.These two rotating beacons are mounted on aluminum brackets which will be attached to each side of the faired Integral Classic.These legs will be painted the same color as the triangle fairing....
option-integral-carene-2gyro

Two orange HALOGEN beacons

Ref: 29030


 (For other rotating lights please contact us)

kit-2-gyrophare-halogne

2 Light kit

2 Light kit

Ref: 30223
The streamlined Integral Classic can be completed with a kit of two LED spotlights.These two headlamps are mounted on the fairing below the triangle.One on the left and one on the right.Led projector: This banner projector is made up of 6 high luminous intensity white LEDs.Pow...
option-integral-carene-2projecteur-30223

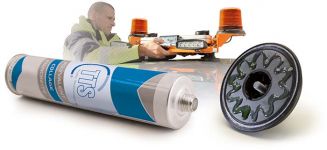

Adhesive fixing kit

Adhesive fixing kit for Integral streamlined

Ref: 29053
The fastening of the faired Classic integral is by default magnetic, via three magnets. The Integral can be glued using this adhesive option. This primary single-component polyurethane sealant must be applied to the three magnets.
tts-kit-fixation-adhesif-ref-29053

Adhesive fixing kit

Roof rack fixing kit for Integral streamlined

Ref: 38492
The fastening of the faired Classic integral is by default magnetic, via three magnets.The Integral can also be attached to a roof rack.This option includes the roof bar and a pair of hitches suitable for your vehicle.The roof bar is a base profile in extruded aluminum, black an...
tts-option-integral-fixation-barre-de-toit-face

Intégral classic


Manual kit

Ref: 1576
kit_manuel

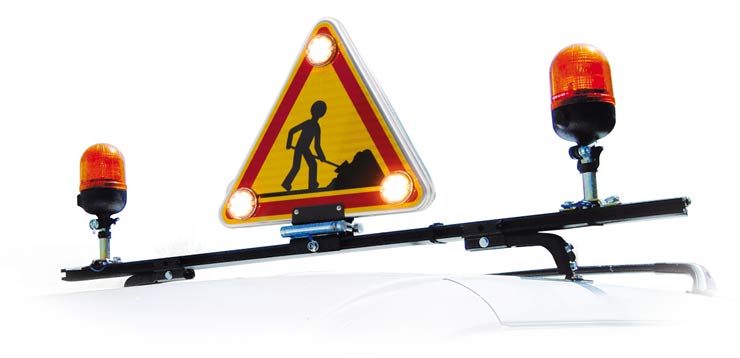

Intégral classic

The Integral system is a concept: the concept of developing  a coherent and bespoke ready-made assembly.
Our design concept will ensure that we produce the
equipment that you require


Pre-assembled, ready to install.
tts-gamme-integral-classic

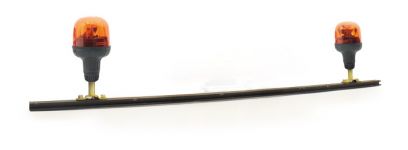

INTEGRAL CLASSIC CONFIGURATION N°1

Ref: 1955
Pre-equipped assembly including:1 roof rack. 2 rotating halogen sphere lights » with connection tubes.
integralref1955-gyro2018

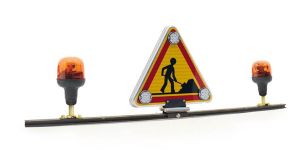

INTEGRAL CLASSIC CONFIGURATION N°2

Ref: 1956
Pre-equipped assembly including:1 roof rack. 2 halogen rotating beacons with connection tubes.1 LED triangle 500.
Integral-classique-2-elements-ref1956--triangle-500

INTEGRAL CLASSIC CONFIGURATION N°3

Ref: 1957
Pre-equipped assembly including:1 roof rack. 2 halogen rotating beacons with connection tubes.1 LED triangle 700.
Integral-classique-2-elements-ref1957--triangle-700

INTEGRAL CLASSIC CONFIGURATION N°4

Ref: 1958
Pre-equipped assembly including:1 roof rack. 2 rotating halogen sphere lights » with connection tubes.1 LED triangle 500.2 LED lights.
Integral-classique-3-elements-ref1958--triangle-500

INTEGRAL CLASSIC CONFIGURATION N°5

Ref: 1959
Pre-equipped assembly including:1 roof rack. 2 rotating halogen sphere lights » with connection tubes.1 LED triangle 700.2 LED lights.
Integral-classique-3-elements-ref1959--triangle-700

LED rotating light options

TWO ORANGE LEDs BEACONS KIT

Ref: 35341

(For other rotating lights please contact us)

2 orange rotating LED lights.
tts-integral-kit-gyrophare
