INTEGRAL Streamlined Classic 700 - Manual Lift

Ref : 29113

General information

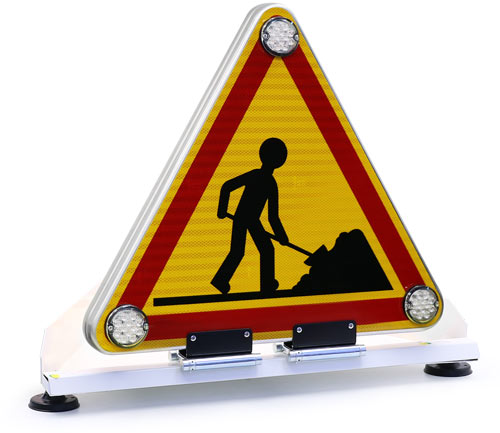

The Integral Classic with housing is an all-in-one vehicle signaling system, featuring a tri-flash triangle integrated into a painted aluminum housing. It is very easy to install and use, as it requires no tools for setup.

Delivered assembled – Ready to operate.
Easy to transport, weighing only 12 kg.
12 / 24 V cigarette lighter power supply.
BTR polyamide plate and C2 reflective adhesive.

Technical specifications

Triangle:

It is made of anodized aluminum and consists of two 700 mm AK5 panels, class 2, assembled back-to-back. It is mounted on a double-action hinge, allowing the triangle to tilt forward or backward.

Ultra high-impact light signal:

The lighting unit consists of three ultra-flat Ø 72 mm lenses on each side. Each light features 12 high-intensity yellow LEDs, protected by a magnifying lens. The lifespan of an LED exceeds 100,000 hours.

Robust housing:

Its structure (frame and housing) is made of aluminum. The housing’s epoxy coating is white by default (if another color is required, please specify the RAL code when ordering).

Magnetic or adhesive mounting:

By default, this assembly is mounted magnetically using three magnets. Authorized speed is up to 130 km/h with the triangle folded, and up to 70 km/h with the triangle raised. It can also be fixed using the optional "adhesive mounting kit", reference 29053. This equipment is supplied with a 10-meter power cable equipped with a cigarette lighter plug.
