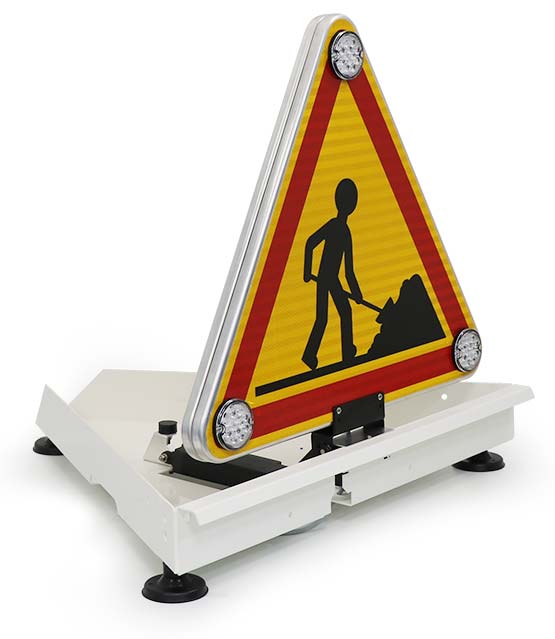

Triangle: It is made of anodized aluminum and consists of two 700mm AK5 panels assembled back to back. The light element is made up of three extra flat optics Ø 72 mm on each side. Each has 12 yellow leds of high light intensity. The lifespan of a led is more than 100,000 hours. The triangle is in dual voltage, it can be supplied with 12 volts as well as 24 volts without changing the lights.

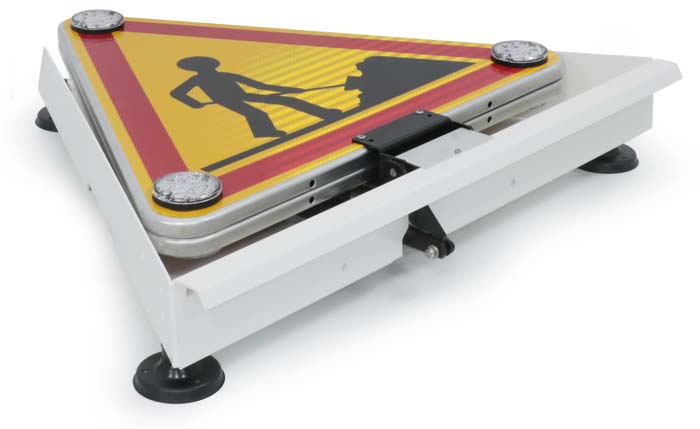

Electric lifting: Its structure (frame and fairing) is made of aluminum. An electric cylinder allows the triangle to be folded into the fairing. When the triangle is raised, the optics are in operation. The epoxy paint on the fairing is white by default (if another color desired, specify the RAL when ordering).
Fixing: Basically, the fixing of this set is magnetic via three magnets. Authorized speed up to 130 km / h with the triangle folded down. It can be glued using the "adhesive fixing kit" option in reference 29053. It is necessary for this equipment to take an adhesive fixation (permanent).
This equipment is supplied with a 10 meter power cable and is controlled by a 1 switch kit with 15A protection.
The Integral: Classic and Streamlined
Accueil (Portail TTS) >Temporary, On-board and Permanant Signals > VEHICLE SIGNALING > The Integral: Classic and Streamlined > INTEGRAL Streamlined Classic 700 - Electric Lift
INTEGRAL Streamlined Classic 700 - Electric Lift
Ref : 29964
The Streamlined Classic integral With a 700 mm triangle and electric lift is an integrated system in a painted aluminum fairing. It is very convenient to install and use.
General information
Technical specifications
| Operating Mode | Double flash |
| Power supply | 12 to 24-Volt |
| Protection | IP 44 |
| Weight | 11,6 Kg |
| Options | Adhesive fixing kit, 2 rotative beacons kit, 2 projectors kit |
