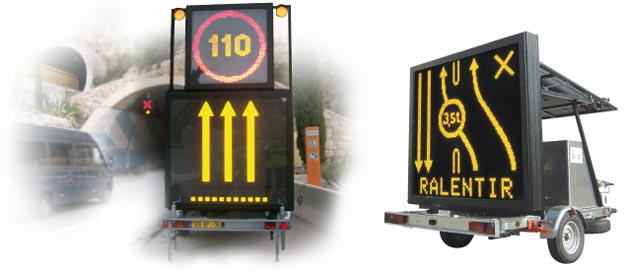

ANIMATED MATRIX TRAILER

Assembly of 2 variable message signs, equipped with high light intensity LEDs, on-board a trailer.

Structure :
Single axle chassis 1300 kg.
Manual stabilisers / Parking brake / Inertial braking /Adjustable height draw-bar.

Fixed lower part display :
Monochrome graphic 128 x 96 point matrix.
Used to display text, KD signs, animations

Moving upper part display:
Two-colour graphic 48 x 48 point to 64 x 64 point matrix. Used to display "normal to very large" range signs of type A, B and KD.

Control:
On site, by laptop PC or thumb-wheel.
Remotely, by GSM link, radio etc.

Programming from a PC:
Software provided on CD ROM.
Files backed-up on hard disk.
Programming of messages, animations, signs from a library.
Multi-level access code for security of programming.

Modular design:
Generator set / batteries charger / electrically operated stabilisers / GSM modem...

Power:
230 V.
bande_vertical_remorque_matrice

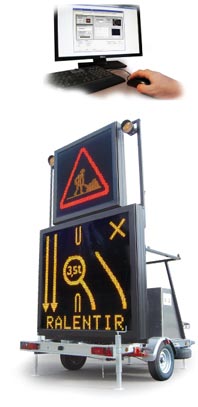

Animated matrix trailer

Ref : 13763
Structure :Single axle chassis 1300 kg.Manual stabilisers / Parking brake / Inertial braking /Adjustable height draw-bar.Fixed lower part display :Monochrome graphic 128 x 96 point matrix. Used to display text, KD signs, animationsMoving upper part display:Two-colour graph...
