VMS Trailers

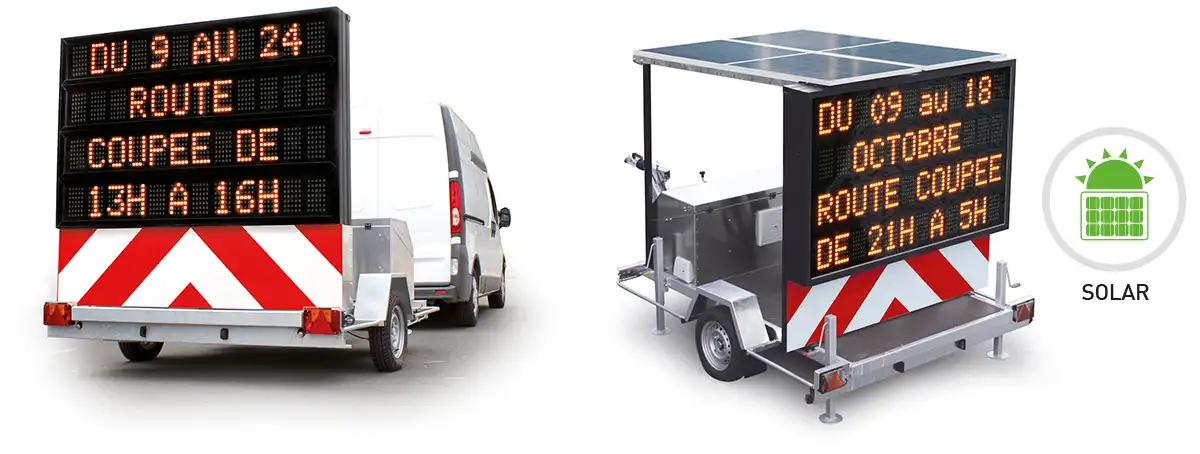

This variable message sign on-board a trailer is equipped with high light intensity LED displays. Created to provide temporary mobile signaling on roads and motorways, they provide road users with information on traffic conditions.

focus1

Selectable power supply

The electrical modularity of the VMS trailer allows it to be powered by different energy sources : batteries, 230 V, generator, solar energy.

focus2

Galvanised 750 kg chassis :


The 750 kg chassis made entirely of galvanised steel can be towed by a light vehicle with no special licence required. It is equipped as standard with an adjustable height drawbar and a self-braking system.

focus3

Towable by a light vehicle without a specific license.


focus3

automatic braking system integrated into the trailer


focus1

Adjustable Drawbar


focus2

100% LED technology:


200 mm H displays composed of a 7x5 matrix with 3 LEDs per pixel, for a total of 105 high brightness 5 mm yellow SMD LEDs. This light element is integrated into a one-piece box made of mechanically welded TTS aluminum profile. It is covered with a black oven-baked epoxy paint. The front panel is made of 4 mm anti-UV polycarbonate for maximum protection. The assembly is completely removable for simplified maintenance. Our displays are CE EN12966 certified.

focus2

Protected displays:


Our displays are protected behind a polycarbonate wall on the front.

focus3

Ease of use and maintenance


Easy to use, our VMS trailer makes the work of operators easier, both on the road and in the workshop. A simple, lockable box brings together all the power supplies. Access to the displays is by opening the rear door of the box.

focus3

Control unit


The modularity of the VMS trailer allows control by different systems locally or remotely: encoder wheel, local control box with LCD screen, updates via USB key, remote control via 4G modem, supervision software, etc.

Single axle trailer 750 kg

Ref : 32775
Single axle trailer, 4 lines of 12 characters, character height 200 mm, 3 LEDs per point.
pmv-tts

Photovoltaic option for VMS trailer

Ref : 54595
Solar power supply option :600 W photovoltaic panel.
pmv-soaliretts
