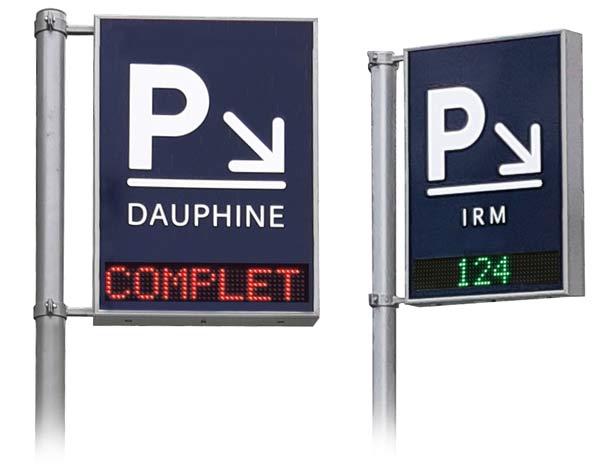

Parking entrance flag - Single Face: 850 x 1150 mm - 125 mm three-color display

Ref : Depending on mounting and backlight option

Parking entrance flag - Single Face: 850 x 1150 mm - 125 mm three-color display
General information



Without backlight / wall mountingREF : 56111
Without backlight / mounting on Ø114 mm mastREF : 55854
With backlight / wall mountingREF : 56112
With backlight / mounting on Ø114 mm mastREF : 55850
Technical specifications
  • Lacquered aluminum profile, 850 x 1150 mm.
  • Single sided.
  • Faces in 3 mm colorless anti-reflective polymethyl methacrylate.
  • Side decorations in class 1 retroreflective film (50 cd/lux/m²).
  • Variable message display:
    • Height: 125mm
    • Colors: green/red/yellow 7 characters.
    • 30° 5500mcd LEDs.
  • Management terminal integrated in the box.
  • IP, RS485, RS232, RS422 command on protocol to be defined + 3 priority contact inputs.
  • Brightness management by day/night cell.


Options:

  • Aluminum mast diameter 114 mm x 3.70 m with anchoring kit and connection box.
  • Backlighting by LED modules.
  • RGB display card.
  • Surge arrester 20 kA.
  • RAL on request.
Power supply 230 VAC
Autonomy without backlight 20 W with backlight 70 W
Thickness 156 mm
Size (L x l x h) 850 x 150 x 1150 mm
Color RAL 9006
