BEACON LEDS - ORANGE - WIRELESS - RECHARGEABLE - 12/24 V - MAGNETIC BASE & SUCTION CUP

Ref : 52547

BEACON LEDS - ORANGE - WIRELESS - RECHARGEABLE - 12/24 V - MAGNETIC BASE & SUCTION CUP
General information

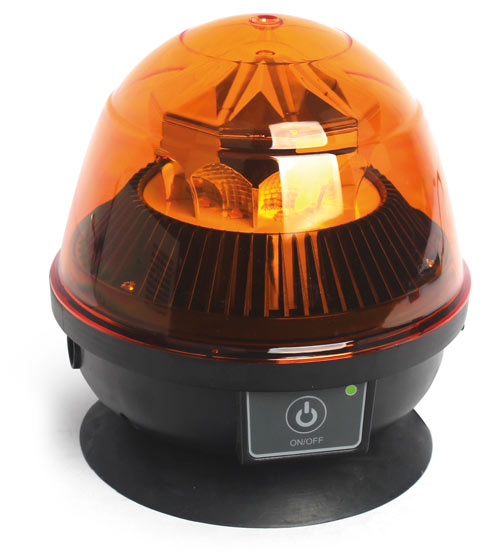

LED beacon composed of a very resistant orange polycarbonate dome and a magnetic base with suction cup.

It is composed of 10 high efficiency LEDs distributed in a circle. The reflectors have been designed to better focus the light signal and offer better propagation thereof.

This rotating beacon operates on a 7.4 Volts 2.6 A / h lithium battery. Rechargeable by a spiral cord with cigarette lighter plug (supplied).

Autonomy: 6h00 (depending on the operating mode chosen and the state of charge of the battery). Recharging time: 4h00.

On / off button on the front panel with battery charge status indicator.

This rotating beacon is approved according to the ECE R65 R10 regulation.

Gyrophare à LEDs composé d’un dôme en polycarbonate orange très résistant et d’une embase magnétique avec ventouse.

Il est composé de 10 LEDs haut rendement réparties en cercle.
Les réflecteurs ont été conçu pour mieux focaliser le signal lumineux et offrir une meilleur propagation de celui-ci.

Ce gyrophare fonctionne sur une batterie lithium de 7,4 Volts 2,6 A/h.
Rechargeable par un cordon spiralé avec fiche allume-cigare (fourni).

Autonomie : 6h00 (selon le mode de fonctionnement choisi et l’état de charge de la batterie).
Temps de recharge : 4h00.

Bouton on/off en façade avec voyant de l’état de charge de la batterie.

Ce gyrophare est homologué selon la règlementation ECE R65 R10.

Technical specifications
Operating Mode Flash and rotating mode. 7 different modes
Power supply 12 à 30 Volts.
Autonomy 6 h (depending on the mode chosen and the state of charge of the battery).
Protection IP 67
Weight 0.64 Kg (0.74 Kg with the charging cord on the cigarette lighter).
Size (L x l x h) Ø 109 mm (at the base). Height: 138.8 mm.
