Enhanced signaling

BTR Range

BTR

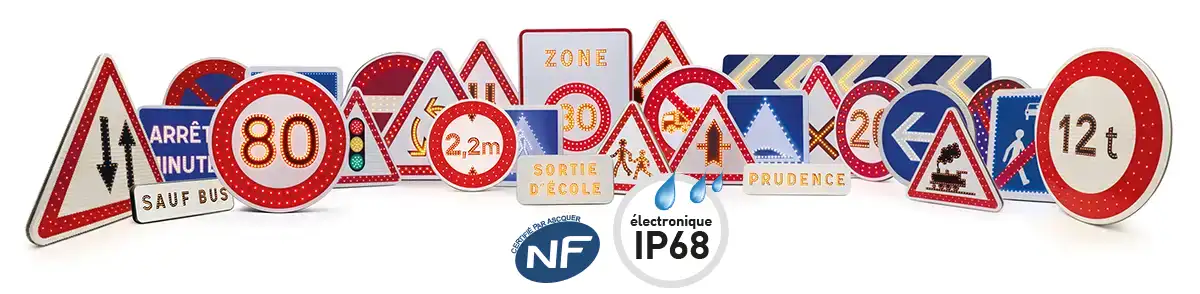

The enhanced Police sign (PPRF) in the BTR range, has a low thickness and is made up of two aluminium signs with folded dropped edges, assembled using an elastomer seal.

Epoxy paint finish, silver-grey colour RAL 9006.
It is equipped with 3 m of cable.
Rear fixing using double rail.

The border is enhanced by two rows of red LEDs (for C signs: one row of blue LEDs).
The symbol is enhanced by yellow LEDs on the border (for C signs: one row of white LEDs).

The panel must be connected to a power source: 230 V, on public lighting, or solar.



focus2

 Electronics fully encapsulated in resin:

Our innovative and rigorously tested process allows our electronic devices to achieve an IP68 rating, providing maximum protection against dust and water ingress.
focus2

Qualified & sorted LEDs (High intensity & high efficiency):

  • High luminous efficiency.
  • Reduced consumption.
  • Lifespan +50%.

TTS advantages:

  • Thanks to their NF058 certification, our panels replace their non-reinforced equivalents.
  • Thin box (5 cm) in the shape of the panel.
  • No savings on the number of LEDs :
    • Listel composed of 2 rows of LEDs.
    • The symbol is reinforced by LEDs.
  • Class 2 approved 3M film.
  • Adding options possible at any time.
  • High efficiency 5mm LEDs.
  • Simplified and reduced maintenance.
  • No more rivets, only the message on the front.
  • Visible: Avoids the phenomenon of addiction.
  • Reliable: Lifespan greater than 100,000 hours.

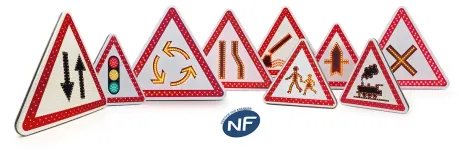

BTR reinforced police panel • Range A “Danger”

 Range A reinforced police signs are “danger” type signs. It signals the presence of a specific danger in the surrounding environment of the road.With their low thickness of 50 mm, their aluminum composition with edges, classic of traffic signs and their RAL 9006 silver color, they in...
pprf-btr-gamme-a

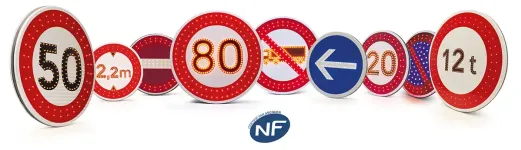

Enhanced Police sign – BTR RANGE – ROUND (B)

The reinforced police signs range B are “prohibition / obligation / prescription” type signs. They make it possible to regulate, order and secure the movement of all road users by imposing clear rules to be respected.With their low thickness of 50 mm, their aluminum composition with e...
pprf-btr-gamme-b

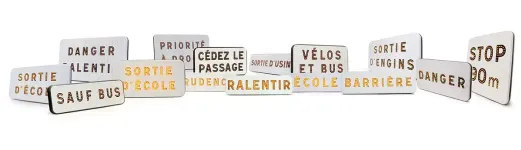

Enhanced Police sign – BTR RANGE – EDGE (C)

C range reinforced police signs are “indication” type signs. They transmit information or give an indication, often linked to a specific road layout.With their low thickness of 50 mm, their aluminum composition with edges, classic of traffic signs and their RAL 9006 silver color, they...
pprf-btr-gamme-c

Enhanced Police sign – BTR RANGE – M9z

The reinforced police signs M9 range M9Z are complementary indication signs. They make it possible to provide road users with a reminder of danger, prescription or indication. They can be combined with a triangle (range A), round (range B) or square (range C) panel.With their low thic...
pprf-btr-gamme-m9z
