Dynamic site entrance totem 1500 x 4000 mm


Dynamic site entrance totem 1500 x 4000 mm
General information

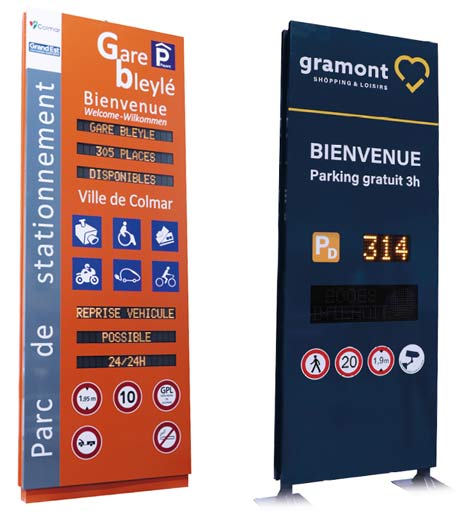

Made up of a welded structure and aluminum front and rear panels, the parking lot entrance totem gives the parking lot a quality image. It allows the integration of displays of availability of the number of places according to your needs. Its orientation also allows optimal visibility when approaching the site.

In this Maxi version, it is required at the entrance to your car park. Its dimensions offer you a wide range of customization whether in display size or static information.

One or more rear access hatches depending on the arrangement of the displays allow simplified maintenance operations.

It is compatible with the entire range of 80mm to 400mm displays.

Operation possible on proprietary protocol with DEDALE software or as a slave on a toll system or guidance instead. Many existing communication protocols.





Technical specifications
Furniture :
  • Structure: Mechanically welded

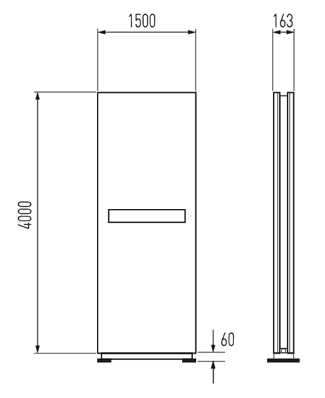

  • Display area dimensions: 1500 x 4000 mm
  • Profile: Hollow Joint
  • Front face: Aluminum 20/10
  • Front lining: anti-reflective PMMA
  • Rear face: Aluminum 20/10
  • Maintenance access: Rear hatch
  • Protection class: IP44
  • Support: Lacquered steel base
  • Fixing: Crosses Ø22 mm
  • Silkscreen: Choice of
  • Colors: Choice of
  • Painting: RAL of your choice
  • Silkscreen: According to request

Display:
  • 7-character display range: 80 mm to 400 mm
  • Number of lines: 1 to 5 as needed
  • Management terminal block: GAU2
  • Brightness management: D / N cell
  • Surge arrester: 20 kA
  • Power supply: AC 230 V
  • Operating temperature: -25 ° C. / + 50 ° C
  • Viewing angles: 120 °

Control:
  • Connection possible: Wired / Radio / 3G / 4G
  • Protocol: Owner or slave
