Dynamic site entrance totem 1000 x 3000mm


Dynamic site entrance totem 1000 x 3000mm
General information

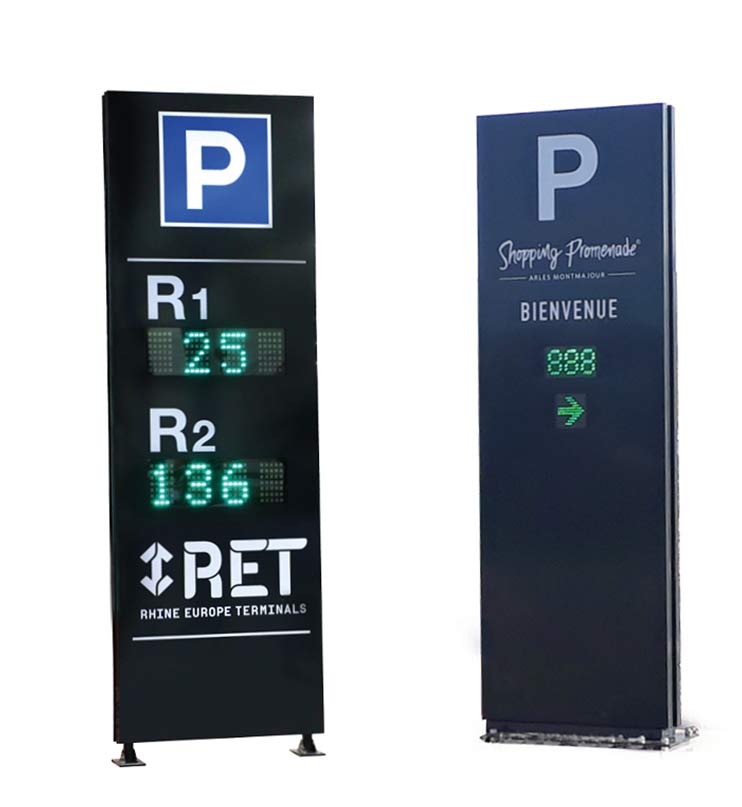

Made up of a welded structure and aluminum front and rear panels, the 800 x 2000mm parking entrance totem gives the parking lot a quality image. It allows the integration of displays of availability of the number of places according to your needs. Its orientation also allows optimal visibility when approaching the site.

In this Medium version, it is compatible with a wide range of displays ranging from 80mm to 200mm. Intended for outdoor use, it incorporates an access hatch on the back for easy maintenance operations.

As an option, some areas can be backlit. If the installation requires it, this format can also be offered to you on a double-sided basis.

Operation possible on proprietary protocol with Dedale software or as a slave on a toll system or guidance instead. Many existing communication protocols.





Technical specifications
Furniture :
  • Structure: Mechanically welded

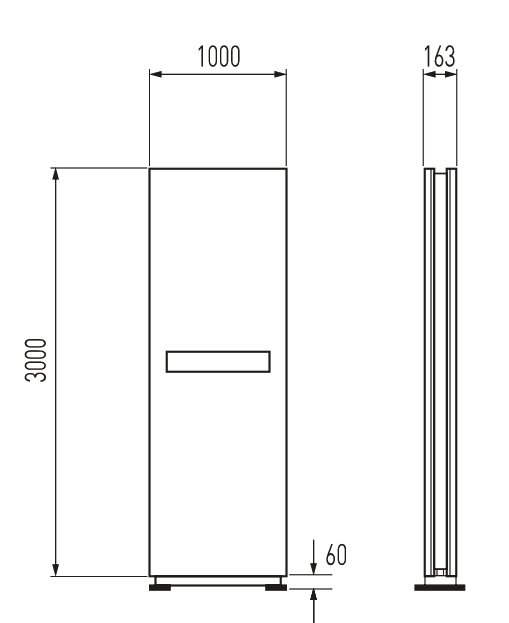

  • Display area dimensions: 1000 x 3000 mm
  • Profile: Hollow Joint
  • Front face: Aluminum 20/10
  • Front lining: anti-reflective PMMA
  • Rear face: Aluminum 20/10
  • Maintenance access: Rear hatch
  • Protection class: IP44
  • Support: Lacquered steel base
  • Fixing: Crosses Ø 22 mm
  • Silkscreen: Choice of
  • Colors: Choice of
  • Painting: RAL of your choice
  • Silkscreen: According to request

Display:
  • 7-character display range: 80 mm / 125 mm
  • 3-character display range: 80 mm / 125 mm / 160 mm
  • Number of lines: 1 to 5 as needed
  • Management terminal block: GAU2
  • Brightness management: D / N cell
  • Surge arrester: 20 kA
  • Power supply: AC 230 V
  • Operating temperature: -25° C. / + 50° C
  • Viewing angles: 120 °

Control:
  • Connection possible: Wired / Radio / 3G / 4G
  • Protocol: Owner or slave
