Ref : 1570

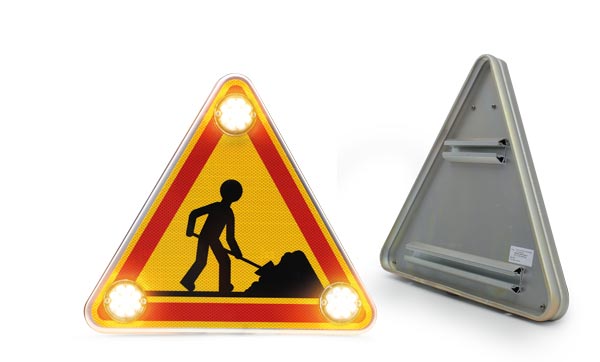

With rails fixed on the back
General information
The anodized aluminum casing is made up of two assembled 500mm sheets.

On the front face is glued an AK5 class 2 adhesive and three optics are wired.

Rear fixing by double rails.

It is supplied with a 10 meter power cable.

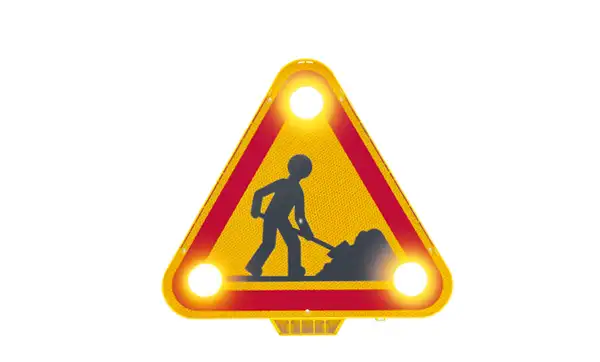

The triangle is made up of three extra flat Ø 72 mm optics. Each light has 12 yellow leds of high light intensity and is protected by a magnifying lens.

The lifespan of a led is more than 100,000 hours.

The triangle is in dual voltage, it can be supplied with 12 volts as well as 24 volts without changing the lights.
Technical specifications
Operating Mode Double flash, 90 flashes per minute
Power supply 12 or 24-Volt
Autonomy 50 mA
Protection IP 44
Weight 4,1 Kg
Size (L x l x h) 481 x 112 x 500 mm
Options Class 2, another symbols
