Mezzo 8 ECO panel + power module + cable

Ref : 43385

Mezzo 8 ECO panel + power module + cable
General information

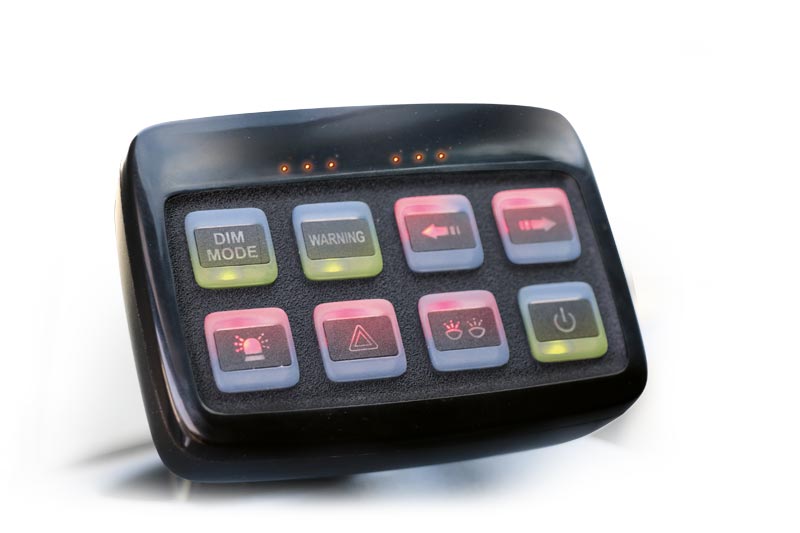

Mezzo 8 ECO is a control panel which is very compact, ergonomically designed and fully configurable. The keys can be customised and back-lit, depending on the equipment that is active.
Technical specifications

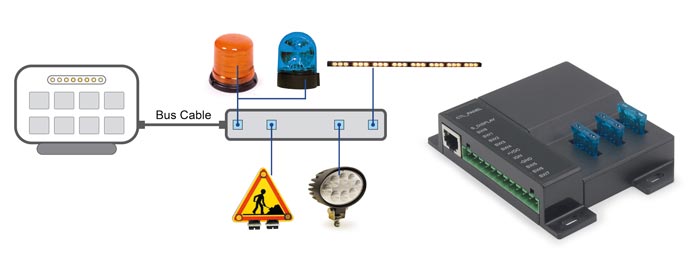

The dual-voltage power can be used to control up to 3 self-protected on-off outputs, and 8 other sequential outputs. It offers 10 Ampere outputs for connecting large-scale, power consuming items of equipment.
Voltage Courant max./sortie positive:Maximum 10 A x 3 ports. Maximum 0,2 A x 5 ports. Courant max./sortie rampe : 2A.
Power supply Bi-tension12 / 24 V
Weight Boîtier : 84 grammes. Module de puissance : 131 grammes. L’ensemble complet avec boîtier, module de puissance, câble et rotule de fixation : 461 grammes.
Size (L x l x h) Boîtier : 95 x 25 x 70 mm (sans la fixation). Module de puissance : 112 x 90 x 27 mm
