Management of Access Ramps

gestion-rampe

Two-way parking access ramp management automation

The system manages vehicle priorities on a two-way ramp where crossing is not allowed. The system can be configured in several ways, and a clock option allows switching from one mode to another. Mode 2 is generally the most common, with simple implementation and minimal cable pulling.

Features of the two-way access ramp management automation:
Depending on your needs, you can choose one of the four possible system configurations.
The timing parameters for the different modes are set via dip switches on the management board.
Representation of the 4 different modes offered

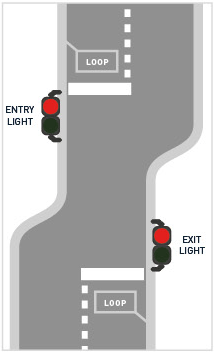

Mode 1:
First come, first served
(2 loops)
Mode 1 : First come, first served

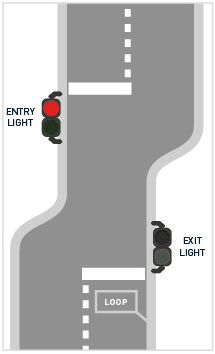

Mode 2:
Priority entry
(1 loop)
Mode 2 : Priority entry
Mode 3:
Priority exit
(1 loop)
Mode 3 : Priority exit
Mode 4:
Alternating operation
Mode 4 : Alternating operation
Standard References: The system consists of 3 components
ComponentsReferences
(a) Control Box with 8 I/O Counting Controller51119
(b) Box with 1 Mono Detector51906
(c) Kit with 1 Electromagnetic Loop50681
