Fire Signaling Housing
Fire Signaling Housing

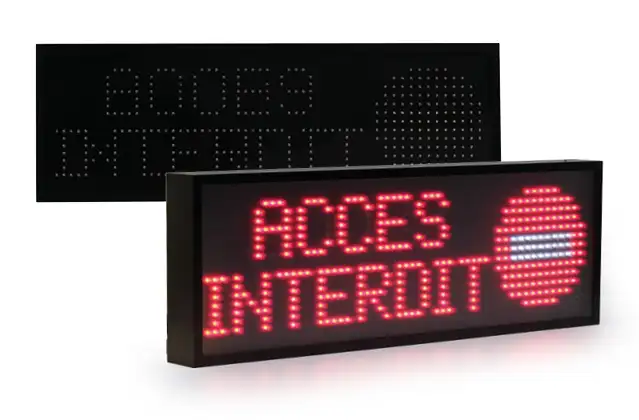

Fixed Message Display • NO ENTRY + B1 • Red and White LEDs
Advantages of Dynamic Fire Signaling Boxes:
- The dynamic LED box "No Entry + Do Not Enter" addresses the need to secure access to parking facilities or other parking areas during emergencies by prohibiting entry.
- This box can be controlled by the fire detection system and is intended to be installed at the parking entrance.
- Cost-effective.
- Scrambling LEDs prevent misleading drivers when the box is turned off.
Specifications of Dynamic Fire Signaling Boxes:
| Power Supply | 24 V |
| Control | Direct |
| Mounting Options | Wall-mounted or suspended |
| Power Consumption | 20 W |
| Weight | 5.9 kg |
Standard References: Fire Signaling Box
| Dimensions WxHxD (mm) | Power Supply | Control | References |
|---|---|---|---|
| 800 x 270 x 70 | 24 V DC | Direct | 44823 |
Power Supply Options
| Power Supply | Control | References |
|---|---|---|
| 12 V DC | Direct | 50252 |
| 24 V DC | Dry Contact | 50256 |
| 48 V DC | Direct | 50253 |
| 48 V DC | Dry Contact | 50255 |
| 230 V AC | Direct | 50254 |
| 230 V AC | Dry Contact | 50251 |
WARNING: This equipment is intended to enhance fire alarm signaling but does not replace certified safety devices. It has no backup power supply in case of mains failure and is not specifically certified for fire protection. However, it can be connected to a Safety Power Supply (SPS). Check compatibility with your project management team before use.
