Backlit Lightboxes

Advantages of Backlit Lightboxes:

• LED backlit lightboxes (low voltage).
• High luminous impact.
• Suitable for both indoor and outdoor signage, for vehicles and pedestrians alike.
• Aluminum-profiled boxes are equipped with glazing beads that secure the PMMA front panel and create an aesthetic and sturdy frame.

Backlit Lightbox Specifications:

Mechanical	Lightbox with glazing beads Lacquered aluminum profile 3 mm white diffusing polymethyl methacrylate (PMMA) front panels Standard color: RAL 9006 (other colors available upon request)
Power Supply	230 V AC
Backlighting	Waterproof LED modules 12 V DC 0.72 W IP 67 Power supply unit 12 V DC 1.5 A 20 W IP 66
Mounting Methods	Wall-mounted
Applied Graphics	Printing technique customization: Digital printing with matte UV-resistant lamination or mass-colored applied graphics
Options	Suspended mounting option Dusk sensor switch (activates based on ambient light levels) Anti-graffiti lamination Glossy lamination Design with hollow joint profiles

Standard References: Square Formats

Dimensions LxHxP (mm)	Single Face Wall Mounting	Double Face Suspended Mounting
200 x 200 x 156	56471	56472
400 x 400 x 156	56473	56475
600 x 600 x 156	56476	56477
900 x 900 x 156	56478	56479

Standard References: Horizontal Rectangular Formats

Dimensions LxHxP (mm)	Single Face Wall Mounting	Double Face Suspended Mounting
800 x 200 x 156	56481	56482
1000 x 200 x 156	56483	56484
1300 x 200 x 156	56485	56486

Standard References: Pediments

Dimensions LxHxP (mm)	Single Face Wall Mounting
2500 x 400 x 156	56490
3000 x 500 x 156	56491

Standard References: Vertical Rectangular Formats

Dimensions LxHxP (mm)	Single Face Wall Mounting
450 x 550 x 156	56487
850 x 1150 x 156	56488

Standard References: Round Formats

Dimensions LxHxP (mm)	Single Face		Double Face
Dimensions LxHxP (mm)	Wall Mounting	Suspended Mounting	Flag Mounting
Ø 350 x 130	56300	62000	56121
Ø 450 x 130	56489	62001	61852

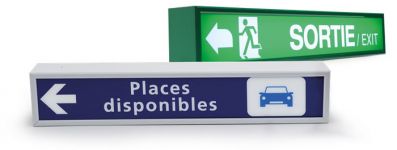

LIGHT BOX - RECTANGULAR 1300 x 200 mm - SINGLE SIDED

Ref : 56485

The rectangular LEDs backlit boxes are totally appropriate for the car park environment. Indoors or outdoors, because they have a strong light impact.
The polymethyl methacrylate used is specially designed for LEDs backlighting and will allow real visibility of your indications.
These boxes are particularly suitable for indicating path information for both pedestrians and vehicles.

caisson-lumineux-tts-rectangulaire-1300x200-simple-face

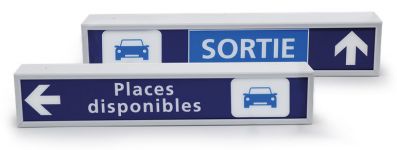

LIGHT BOX - RECTANGULAR 1300 x 200 mm - DOUBLE SIDED

Ref : 56486

The rectangular LED backlit boxes double sided are totally appropriate for the car park environment. Indoors or outdoors, because they have a strong light impact.
The polymethyl methacrylate used is specially designed for LED backlighting and will allow real visibility of your indications.
These boxes double sided are particularly suitable for indicating path information for both pedestrians and vehicles.

caisson-lumineu-tts-rectangulaire-1300x200-double-faces

LIGHT BOX - SQUARE 200 x 200 mm - SINGLE SIDED

Ref : 56471

The LEDs backlit boxes are totally appropriate for the car park environment. The polycarbonates and acrylic faces used are specially designed for LEDs and will allow real visibility to your road signs. This square format is perfectly suited to parking signage. The small format (200 x 200 mm) will find its place where technical constraints require the installation of small signage. (Low ceiling height, raised base, ...).

caisson-lumineux-tts-carre-400x400-double-faces

LIGHT BOX - SQUARE 200 x 200 mm - DOUBLE SIDED

Ref : 56472

LIGHT BOX - SQUARE 400 x 400 mm - SINGLE SIDED

Ref : 56475

The LEDs backlit boxes single sided are totally appropriate for the car park environment. The polycarbonates and acrylic faces used are specially designed for LEDs and will allow real visibility to your road signs. This 400 x 400 mm square format is perfectly suited to parking signage. Visible from afar, it is particularly appreciated for large aisles.

LIGHT BOX - SQUARE 400 x 400 mm - DOUBLE SIDED

Ref : 56474

The LEDs backlit boxes are totally appropriate for the car park environment. The polycarbonates and acrylic faces used are specially designed for LEDs and will allow real visibility to your road signs. This 400 x 400 mm square format is perfectly suited to parking signage. Visible from afar, it is particularly appreciated for large aisles.

LIGHT BOX - ROUND DIAMETER 350 mm - SINGLE SIDED

Ref : 56300

The Ø 350 single-sided LED backlit boxes are totally appropriate for the car park environment. Indoors or outdoors, because they have a strong light impact.
The polymethyl methacrylate used is specially designed for LEDs and will allow real visibility to your road signs.

We offer you a panel of standardized Police signs perfectly suited to Parking signage. This Double-sided format enables efficient information on the direction of movement of the aisles in your parks.

LIGHT BOX - ROUND DIAMETER 350 mm - DOUBLE SIDED

Ref : 56121

The Ø 350 double-sided LED backlit boxes are totally appropriate for the car park environment. Indoors or outdoors, because they have a strong light impact.
The polymethyl methacrylate used is specially designed for LEDs and will allow real visibility to your road signs.

We offer you a panel of standardized Police signs perfectly suited to Parking signage. This Double-sided format enables efficient information on the direction of movement of the aisles in your parks.

Specific Lighting Solutions

In addition to the “classic” backlighting solutions in the form of a sign with a backlit surface, we offer specific solutions: extruded Plexiglas, box letters, tangential lighting.
This process allows particularly elegant highlighting of the chosen contents.
