AK Signs with accessories

Lighting equipment composed of:
3 optics of Ø 130mm/30 LEDs or Ø 70mm/30 LEDs and a control panel.
The length of the optics leads are 1.5m. Extensions of 5m are possible. Power-up using a 3-position sealed switch (24-hours, off, night).

1000mm triangle sign, class 1 symbol of choice, fitted with an integral stand.
Upgrade option of class 2 triangle possible.


Power supply using 4-battery housing (type 4R25)
Operational endurance 280 hours Triangle 1000mm


Rechargeable battery Power Supply.
Operational endurance 1500 hours with one rechargeable battery.


Connect using one movement...

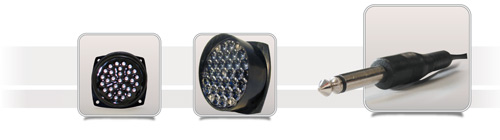

All of our optics are connected to their power supply by a jack plug

TRIANGLE 1000 + LIGHTING KIT 3-FLASH - Ø 130/30 LEDS - BATTERY POWER SUPPLY -

Ref : 17836
Triangle 1000 Ø 130mm/30 LEDs4-battery housing (batteries not supplied)Operational endurance 280 hours Triangle 1000mm
triangle-triflashb2p

TRIANGLE 1000 + LIGHTING KIT 3-FLASH - Ø 130/30 LEDS - RECHARGEABLE BATTERY POWER SUPPLY -

Ref : 20238
Triangle 1000 Ø 130mm/30Rechargeable battery (Rechargeable battery not supplied)Rechargeable battery Power Supply.Operational endurance 1500 hours with one rechargeable battery.
triangle-triflash

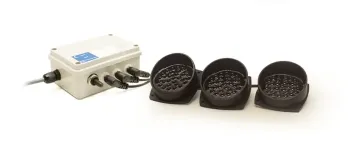

LIGHTING KIT 3-FLASH - Ø 70/30 - BATTERY POWER SUPPLY -

Ref : 19601
Power supply using a 4-battery housing (type 4R25)Operational endurance 280 hours
19601-triflash3

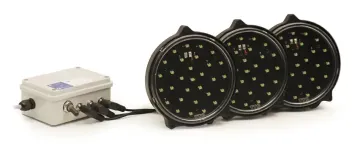

LIGHTING KIT 3-FLASH Ø 130/30 - BATTERY POWER SUPPLY -

Ref : 15702
Power supply using a 4-battery housing (type 4R25)Operational endurance 280 hours
kit-triflash-b4p

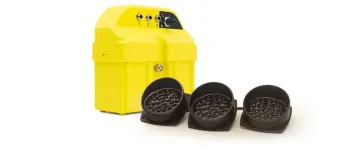

LIGHTING KIT Ø 70/30 - RECHARGEABLE BATTERY POWER SUPPLY -

Ref : 19602
Battery power supply.Operational endurance 1500 hours with a 12 V 75 Ah battery
kit-triflash

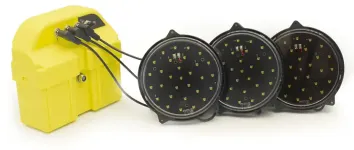

LIGHTING KIT Ø 130/30 - RECHARGEABLE BATTERY POWER SUPPLY -

Ref : 16891
Battery power supply.Operational endurance 1500 hours with a 12 V 75 Ah battery
kit_triflash_batterie

UNIVERSEL ATTACHMENT "CLIP" OPTION

Ref : 29815
The option includes 3 clips pre-installed on optics diameter 130 mm. Option includes 3 clips pre-installed
kitaccroche

PRE-EQUIPPED BAR FOR METAL SHEET SIGNS - 4-battery housing

Ref : 1532
 4-battery housing (batteries not supplied) Bar 1m50.Operational autonomy 175 hours.
barre-pre-equipe-1532

PRE-EQUIPPED BAR FOR METAL SHEET SIGNS - battery power supply

Ref : 23659
Battery not supplied Bar 1m50.Operational autonomy 937 hours.
barre-pre-equipe-k8-batterie

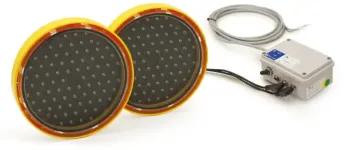

DUAL FLASH-KIT FOR SHEET-METAL SIGNS - 4-BATTERY HOUSING -

Ref : 16893
Lighting accessories made up of 2 optics of diameter 200mm/80 LEDs and a control panel. The length of the optics lead is 1.5m. Extension option available. Power-up using 3-position sealed switch (24-hr, off, night)
Fixing brackets supplied.

Power supply by 4-battery housing (type 4R25).
Operational autonomy 175 hours.
Lighting accessories made up of 2 optics of diameter 200mm/80 LEDs and a control panel. The length of the optics lead is 1.5m. Extension option available. Power-up using 3-position sealed switch (24-hr, off, night)Fixing brackets supplied
kit_panneauK8_pile

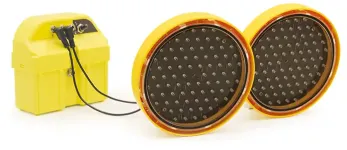

DUAL FLASH-KIT FOR SHEET-METAL SIGNS - Rechargeable battery power supply -

Ref : 16894
Lighting accessories made up of 2 optics of diameter 200mm/80 LEDs and a control panel. The length of the optics lead is 1.5m. Extension option available. Power-up using 3-position sealed switch (24-hr, off, night)
Fixing brackets supplied

Rechargeable battery power supply
Operational  autonomy 937 hours with one rechargeable battery (12 V 75 Ah) Lighting accessories made up of 2 optics of diameter 200mm/80 LEDs and a control panel. The length of the optics lead is 1.5m. Extension option available. Power-up using 3-position sealed switch (24-hr, off, night)Fixing brackets supplied
kit_panneauK8_batterie

Lighting kit options

Ref : 22279
Jack lead extension For optics Ø 130mm or Ø 200mmlength: 5 m
ralonge_jack
