Power Supplies

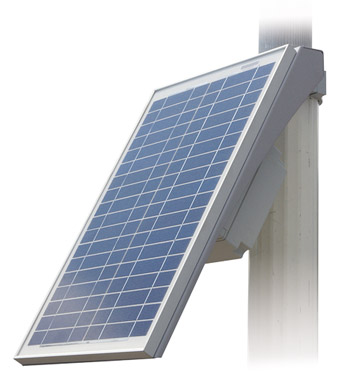

Solar power site kit 20 W • 17 Ah

Ref : 29577

Solar power site kit 20 W • 17 Ah<br />
Assembly made up of a solar panel and an accumulator case which contains the regulation electronics and the battery.
General information
The sun is a fantastic source of energy and eco-responsible, our solar kits are designed to perfectly meet the needs of the system they power. The principle is simple, the system is continuously powered by the battery and it is recharged by energy from the sun.
This model is specific to powering TTS construction site products, it has an XLR socket.


  •  Different operating modes: double flash (default).
  •  Day/night dimming to adapt the intensity according to the brightness.
  •  XLR connection plug.
  •  Rail mounting system on the back.
  •  Possibility of additional options: Clock, radar, remote control.
Technical specifications
focus1

A robust design:

Crimping the solar cell between two panes of solar glass ensures significant longevity and high resistance to bad weather.
focus2

Intelligent management:

Crimping the solar cell between two panes of solar glass ensures significant longevity and high resistance to bad weather.
focus3

Fix to all supports:

The fixing of the solar kit is designed to adapt to any type of support for masts from 60 to 168mm. So it will not be complicated to organize your system to perfection.
focus3

Day/night cell:

An intelligent brightness sensor adapts the intensity in real time, this way consumption remains low and your lighting system perfectly visible.
Operating Mode Double flash (ou simple flash sur demande).
Power supply 12 Volts 17 A/h.
Autonomy En fonction de la charge.
Protection IP 65.
Weight 13.3 Kg.
Size (L x l x h) 358 x 135 x 565 mm (avec système de fixation et coffret inclus).
Options Horloge, radar.
