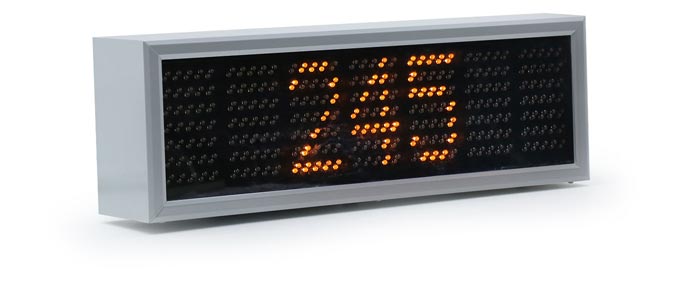

Housings 700x250 Display 125mm

Ref : 56116

Housings 700x250 Display 125mm
General information
Technical specifications
  • Lacquered aluminum profile, single-sided 700 x 250 mm.
  • Front panel in 3 mm colorless anti-reflective polymethyl methacrylate.
  • Rear panel in 30/10e aluminum with fixing rails.
  • Variable message display 125 mm high 2 LEDs per amber color point 7 characters.
  • 30° 2750mcd LEDs.
  • Management terminal integrated in the box.
  • IP, RS485, RS232, RS422 command on protocol to be defined + 3 priority contact inputs.
  • Brightness management by day/night cell.


Options:
  • Aluminum mast diameter 90 mm or 114 mm x 3 m with anchoring kit and connection box.
  • Surge arrester 20 kA.
  • Forced ventilation with filters.
Power supply 230 VAC
Autonomy 20 W
Size (L x l x h) 700 x 156 x 250 mm
